Why Can't You Run PLA on a Standard PE Blown Film Line?

You've run polyethylene for years. LDPE, LLDPE, HDPE — you know the settings. Then you switch to PLA or PBAT for a compostable film order. The bubble wobbles. The film tears at the winder. Or worse, the material degrades inside the barrel, leaving burn marks and an acrid smell. The problem isn't the resin — it's the machine. PLA and PBAT have narrower processing windows, higher sensitivity to temperature, and different melt behavior than PE. A standard PE line simply isn't built for them. A biodegradable blown film machine with low-shear screw geometry, precision temperature control, and inline gravure printing is purpose-built for materials like PLA, PBAT, and their blends. The CX-700/900/1100 series is one example — a single-layer line that handles biodegradable resins with the same reliability as PE lines handle conventional plastics. This guide covers what makes a biodegradable film line different, the key specifications you need to know, and what to look for when adding compostable film capability to your production floor.

What Makes Biodegradable Resins Different from PE

PLA and PBAT aren't just "green" versions of polyethylene — they're fundamentally different materials with distinct processing requirements. PLA has a narrow processing window: too cool, and it won't flow; too hot, and it degrades. PBAT is softer and more elastic, requiring different screw geometries to prevent slipping. Both materials are sensitive to moisture and shear heat. A line designed for PE can't simply be repurposed for biodegradable resins without significant modifications to the screw, the barrel cooling, and the die head design.

Narrow Processing Window

PLA's melting point is around 150-160°C, but its degradation temperature is only slightly higher — typically above 200-220°C. This leaves a narrow operating window where the material is molten but not degraded. The CX series uses precision temperature-controlled meters from Omron to maintain this window, preventing material degradation during extrusion.

Shear Sensitivity and Screw Design

Biodegradable resins are more shear-sensitive than PE. High screw speeds and aggressive compression ratios can generate excessive heat, degrading the material before it reaches the die. The CX series uses an optimized screw with 32:1 L/D ratio and a customized keyway, raising the extrusion volume while lowering the risk of shear degradation.

What the CX Series Delivers – Specs at a Glance

The CX-700/900/1100 series is available in three models to match different production scales. All three are designed for PBAT, PLA, and PLA+MD/ST materials.

Key Features – Designed for Biodegradable Production

What makes the CX series different from a standard PE line isn't just the nameplate — it's the engineering choices made at every level of the machine.

Optimized Screw with 32:1 L/D Ratio

The screw is the heart of any extrusion line. The CX series uses a 32:1 L/D screw with an optimized design that raises extrusion volume and extends service life. The double alloy construction with vacuum fire treatment provides higher anti-corrosion and anti-wear capability, essential for processing biodegradable resins that can be more abrasive than standard PE.

Precision Temperature Control

The line uses Omron temperature-controlled meters to maintain precise thermal control. For biodegradable resins with narrow processing windows, this precision is non-negotiable. The advanced heating system — with aluminum, ceramic, or infrared heating options — delivers better heating speed and heat preservation than traditional stainless steel heating.

Inline Gravure Printing Integration

The CX series integrates online gravure printing directly into the extrusion line, eliminating a separate converting step. The printing unit achieves horizontal ±0.2mm and vertical ±0.2mm printing precision, with a maximum printing width of 595mm to 995mm and printing length of 250-700mm. This means you can produce printed biodegradable film in a single pass — from resin to finished printed roll — saving time, labor, and floor space.

Up-Traction and Film Handling

The up-traction system uses five rollers — one embossing roller, one bending roller, one polyurethane roller, and two traction rollers — to ensure traction stability, film flatness, and consistent embossing. This contrasts with standard three- or four-roller systems that don't provide the same level of control.

Single Component Lost-In-Weight Feeder

Precise material dosing is critical for consistent film quality. The PLC logic-controlled feeder features rapid switching speeds and strong anti-interference capabilities, enabling stable production. The precise weight control allows for a negative tolerance in bag weight, saving approximately 2% on production costs.

Cold Water Roller

The cold water roller rapidly reduces film temperature, improving cooling efficiency, increasing production speed, enhancing film transparency, and reducing adhesion. This is a significant upgrade over traditional traction methods that can't provide the same cooling performance.

Built to Last – Components and Warranty

Biodegradable film lines are a significant investment, and longevity matters. The CX series is structured around high-quality components and an industry-leading warranty.

Global Component Sourcing

The main motor is sourced from Siemens (Germany) , Brook (UK) , or GE (USA) . The inverter is from Schneider (France) or ABB (Switzerland) . The gearbox features hard tooth, oil-cooled, and external circulation cooling.

Three-Year Warranty

The series offers a 3-year warranty on key components — main motor, fan, inverter, die head, and gearbox — setting a precedent in the industry. Most manufacturers in the space offer only a one-year warranty.

Manufacturing Standards

The machines are manufactured under 5S management standards with high-end machining centers, ensuring precision production and consistent quality.

Applications – Where Biodegradable Film Is Used

The CX series is suitable for a wide range of applications across the biodegradable packaging market:

• Shopping bags – Retail bags requiring printed branding

• Garbage bags – Compostable waste collection bags

• Shrink film – Packaging for consumer goods

• Agriculture film – Mulch film for sustainable farming

• Express bags – E-commerce and logistics packaging

• Milk bags – Dairy packaging

• Industrial packing bags – Heavy-duty packaging

• Biodegradable film & bags – General compostable applications

What Film Manufacturers Ask About Biodegradable Extrusion Lines

What materials can the CX series process?
The CX series is designed for PBAT, PLA, and PLA+MD/ST blends. It can also process HDPE, LDPE, and LLDPE for conventional applications.

What is the maximum film width?
The CX-700 produces 600mm film width, the CX-900 produces 800mm, and the CX-1100 produces 1000mm.

What printing precision does the inline unit achieve?
The gravure printing unit achieves horizontal ±0.2mm and vertical ±0.2mm precision.

What warranty is offered?
The series offers a 3-year warranty on key components — main motor, fan, inverter, die head, and gearbox — compared to the industry standard of one year.

What is the typical output capacity?
The CX-700 produces 80-85kg/h, the CX-900 produces 120-125kg/h, and the CX-1100 produces 160-170kg/h depending on material and configuration.

Ready to Switch to Biodegradable Film Production? Let's Build Your Line

Selecting a biodegradable blown film machine comes down to three factors: output capacity (match your production volume), film width (match your application), and material compatibility (match your resin requirements). Contact Chaoxin for a customized quote → —their team can help you select the right CX series configuration for your specific biodegradable film production needs.

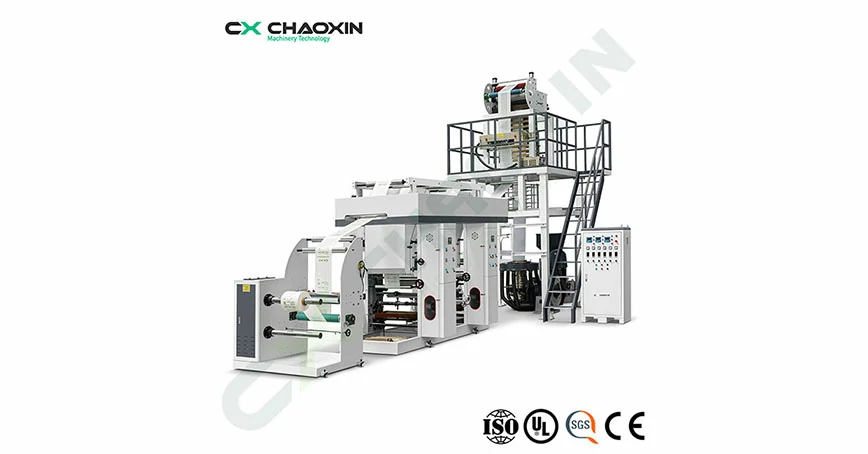

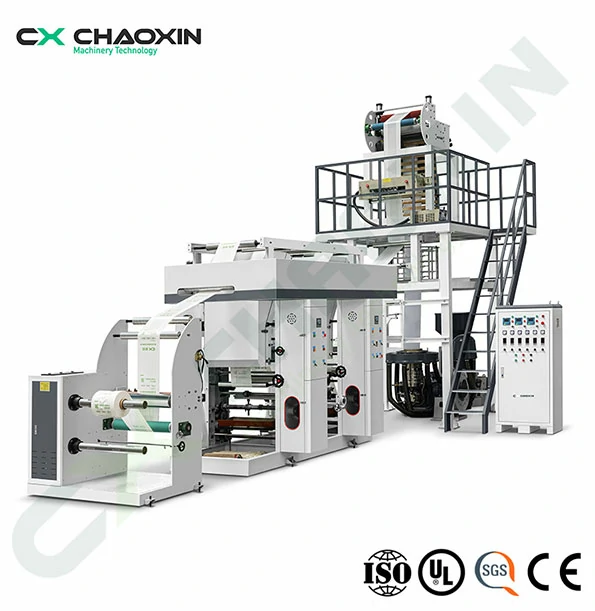

Chaoxin Machinery Technology Co., Ltd. is a professional manufacturer of film blowing machines located in Wenzhou, Zhejiang. The Biodegradable Blown Film Machine with Online Gravure Printing Machine (CX-700/900/1100) features optimized 32:1 L/D screw design, precision Omron temperature control, integrated gravure printing with ±0.2mm precision, single-component lost-in-weight feeder for 2% cost savings, cold water roller for improved film quality, and a 3-year warranty on key components. Applications include shopping bags, garbage bags, shrink film, agriculture film, express bags, milk bags, and industrial packaging. Chaoxin provides comprehensive technical support, installation guidance, and after-sales service. Connect with Chaoxin to discuss your output requirements, film width specifications, and material needs.
