How Does Hot Sealing and Cold Cutting Improve Bottom Seal Bag Quality?

You're running a flexible packaging operation — producing shopping bags, garbage bags, or industrial liners. The bags need strong bottom seals that hold heavy loads without tearing, clean cut edges that look professional, and consistent quality across every run. A bottom seal bag making machine with hot sealing and cold cutting technology is designed for exactly this purpose — feeding film from a roll, sealing the bottom with heat, and cutting each bag cleanly without stretching the material. This guide covers what a bottom seal bag making machine does, how hot sealing and cold cutting work together, the key specifications that determine performance, and what to look for when selecting one for your production line.

From Film Roll to Finished Bag – The Complete Bottom Sealing Process in One Pass

A bottom seal bag making machine takes flat film from a roll and transforms it into finished bottom-sealed bags in one continuous process. The film unwinds from the roll, is fed through the machine, cut to the required length, and sealed at the bottom with heat. The heat sealing process uses precisely controlled temperature and pressure to bond the film layers together, creating a strong, load-bearing seal. The machine then cuts the film cleanly — using a cold cutting mechanism that separates each bag without stretching or distorting the material — and delivers finished bags ready for packing.

The Bottom Sealing Advantage

Bottom sealing creates a strong, load-bearing seal at the base of each bag. This seal configuration is ideal for bags that need to hold heavy contents — shopping bags, garbage bags, and industrial liners. The seal is formed by heat and pressure, creating a bond that is both strong and consistent across every bag.

Continuous Production Workflow

The machine operates continuously from an unwind roll through sealing and cutting stations to finished bag collection. This eliminates the start-stop inefficiencies of semi-automatic systems, significantly increasing throughput and reducing labor requirements.

Heat Sealing for Strength, Cold Cutting for Clean Edges – Two Technologies That Work Together

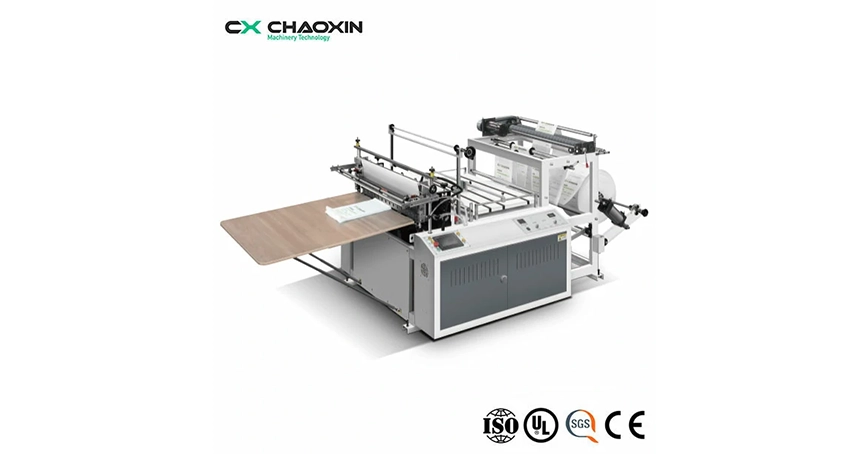

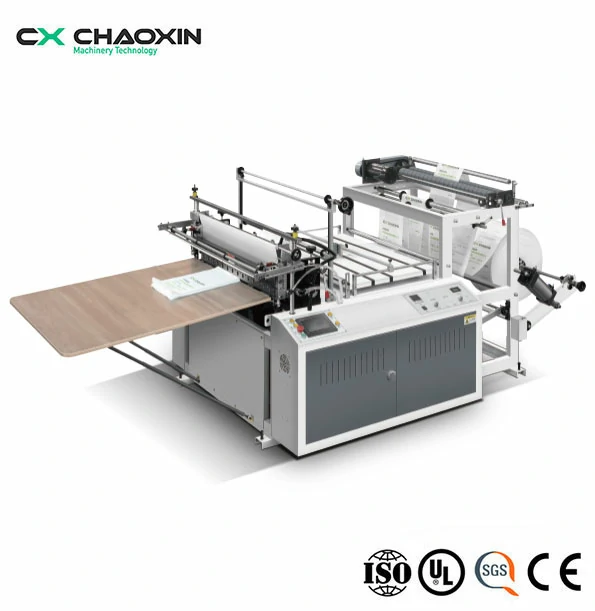

The CX-FB series uses a hot sealing, cold cutting process. This combination of technologies delivers two critical benefits: strong, reliable seals and clean, precise cuts. The heat sealing system uses controlled temperature and pressure to bond the film layers together at the bottom of each bag, creating a seal that can hold heavy loads without tearing. The cold cutting mechanism then separates each bag cleanly — without melting or distorting the edges — resulting in a professional finish that meets retail and industrial standards.

Precision Temperature Control for Consistent Seals

The machine uses advanced temperature control systems — including cast aluminum screw heating and Omron temperature controllers — to maintain consistent sealing temperatures across the entire production run. Consistent heat ensures every seal is strong and reliable.

Clean Cuts Without Distortion

Cold cutting separates each bag without melting the edges. This eliminates the edge curling and material distortion that can occur with hot cutting systems. The result is a professional-looking bag with crisp, straight edges — important for retail applications where appearance matters.

20-120 Bags/Min, 750-1150mm Width, and 0.01-0.20mm Film – The Numbers That Define Production

The CX-FB series is available in three models — CX-FB-800, CX-FB-1000, and CX-FB-1200 — each designed for different production requirements.

Matching Speed to Production Demand

The 20-120 bags/min speed range allows you to match production to your volume requirements. At 120 bags/min, a single machine can produce nearly 7,000 bags per hour — enough to supply multiple downstream packing lines or fulfill large orders.

Material Compatibility

The CX-FB series handles HDPE and LDPE films with thicknesses from 0.01mm to 0.20mm per layer. This covers most common flexible packaging materials — from lightweight shopping bags to heavier industrial liners. The machine can also produce bags in different sizes and thicknesses to meet specific customer requirements.

Shopping Bags, Garbage Bags, and Industrial Liners – Where Strong Bottom Seals Matter Most

Bottom seal bag making machines are used across a wide range of industries and applications where strong, load-bearing seals are required.

• Shopping bags: Retail bags that need to hold groceries, merchandise, and consumer goods

• Garbage bags: Heavy-duty bags that must contain waste without tearing

• Industrial liners: Protective liners for drums, barrels, and shipping containers

• Medical waste bags: Bags that require secure seals for safe disposal

• Heavy duty bags: Bags for agricultural, construction, and bulk material packaging

The strong bottom seal ensures the bag can hold heavier loads without tearing — a critical requirement for all these applications.

Non-Tension Film Handling – The Feature That Reduces Stretch and Improves Seal Strength

One of the key features of the CX-FB series is its non-tension film handling system. Traditional bag making machines apply tension to the film during the sealing and cutting process, which can stretch the material and weaken the seal. The non-tension system eliminates this issue — the film moves through the machine without being stretched, resulting in stronger seals and more consistent bag dimensions.

Why Film Stretch Matters

When film is stretched during production, the bag dimensions become inconsistent — some bags are longer, some are shorter, and the seal strength is compromised. The non-tension design ensures that every bag is produced to the same dimensions, with the same seal strength, every time.

Stronger Seals for Heavier Loads

The combination of non-tension film handling and precise heat sealing produces bottom seals that can hold heavier loads without tearing. This is particularly important for garbage bags, industrial liners, and other applications where bag failure is not an option.

What Production Managers Ask About Bottom Seal Bag Making Equipment

What materials can the machine handle?
The CX-FB series handles HDPE and LDPE films with thicknesses from 0.01mm to 0.20mm per layer.

What is the production speed range?
The machine runs at 20-120 bags per minute, depending on bag size, film type, and configuration.

What are the available width options?
The CX-FB series is available in three models: CX-FB-800 (750mm printing width), CX-FB-1000 (950mm printing width), and CX-FB-1200 (1150mm printing width).

What is the advantage of non-tension film handling?
Non-tension film handling reduces film stretch during production, resulting in stronger seals and more consistent bag dimensions.

What components are used in the machine?
The machine uses high-quality components including Siemens motors, ABB or Schneider inverters, and Omron temperature controllers for stable performance and reliable operation.

Let's Match a Bottom Seal Bag Making System to Your Material and Volume Requirements

Selecting a bottom seal bag making machine comes down to three factors: width (match your bag size), speed (match your throughput), and material compatibility (match your film type). Contact Chaoxin Machinery for a customized quote → —their team can help you select the right CX-FB series configuration for your specific bag production needs.

Chaoxin Machinery manufactures a range of bag making machines for flexible packaging production. The CX-FB series Non-Tension Hot Sealing Cold Cutting Bag Making Machine is available in three models — CX-FB-800, CX-FB-1000, and CX-FB-1200 — with printing widths from 750mm to 1150mm, speeds of 20-120 bags/min, and film thicknesses from 0.01mm to 0.20mm. The machine handles HDPE and LDPE films with non-tension film handling for stronger seals and consistent bag dimensions. Applications include shopping bags, garbage bags, industrial liners, and medical waste bags. Chaoxin Machinery provides comprehensive technical support, installation guidance, and after-sales service. Connect with Chaoxin Machinery to discuss your width requirements, production volume targets, and material specifications.
