What a Side Seal Bag Making Machine Actually Delivers

You need side‑sealed bags – for produce, bakery items, or industrial packaging. The machine that makes them looks simple: film in, sealed bags out. But the difference between a machine that runs 20 bags per minute and one that runs 400 is not just speed. It’s the drive system, the sealing bar design, and the stacker that doesn’t wobble. A side seal bag making machine from Chaoxin comes in several configurations: fully automatic, multi‑layer, and food‑grade compliant. This guide walks through the models, the speeds, and what the spec sheet numbers actually mean for your production floor.

What Is a Side Seal Bag Making Machine? (And Who Needs One)

A side seal bagger seals the sides of a bag (or both sides of a pouch) rather than the bottom. The seal runs vertically along the edge. These bags are common for produce, bakery items, hardware, and industrial packaging.

What it makes

Side‑sealed bags for packaging applications. The seal is clean, consistent, and positioned on the side edge – not across the bottom.

Who uses it

Food packers (produce, bakery, frozen goods), industrial packaging lines, and contract bag converters.

Why side seal instead of bottom seal?

Side seal bags often have a wider opening and are easier to fill with irregularly shaped products. They also stack differently in retail displays.

A side seal bag making machine that runs clean seals without burn‑through or weak spots will save you scrap.

Speeds You Can Actually Expect – From 20 to 400+ Bags Per Minute

Chaoxin offers multiple models with very different speed ranges. Here’s what they actually mean.

Low speed doesn’t mean low quality

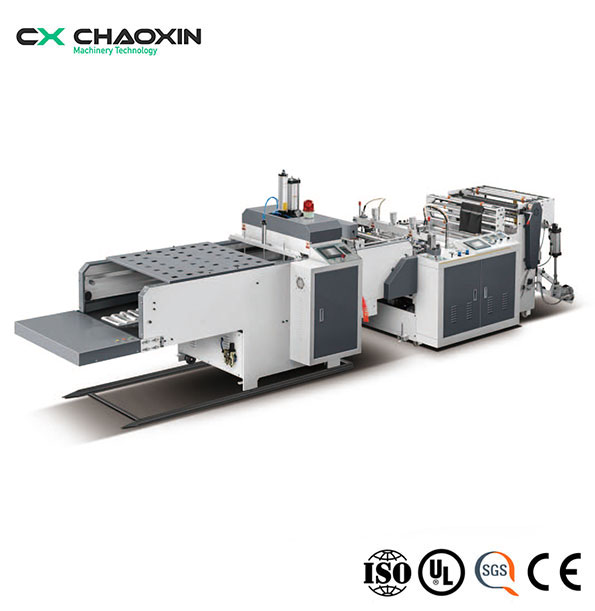

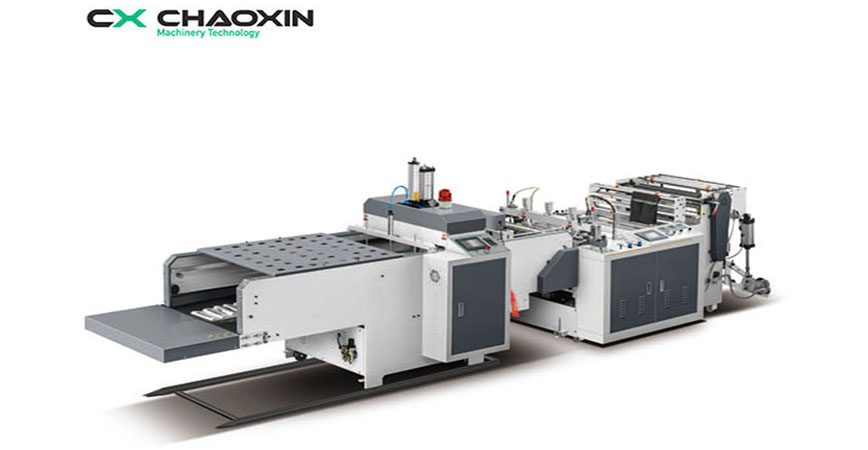

A machine running 20‑120 pcs/min (like the CX-700) is not inferior – it’s designed for thicker films or wider bags where cycle time is limited by sealing and cooling.

“400*2” means two lanes

Models with “X2” in the name have two independent lanes. They produce two bags side by side. The speed number (e.g., 400*2) means 400 bags per minute per lane – total output up to 800 bags per minute.

Thicker film needs slower speeds

Notice the CX-TB-500-600X2 handles up to 0.3mm (4 layers) but runs 120‑300 pcs/min – slower than thin‑film models. Thicker material takes longer to seal and cool.

Fully Automatic vs. Multi‑Layer vs. Food‑Grade – What’s the Difference?

Chaoxin produces three main categories of side seal bag machines.

Fully automatic side seal machines

These run from roll to finished stack without manual intervention. Film unwind, sealing, cutting, and stacking are all automated. Models like CX-700, CX-800, and CX-500X2 fall into this category.

Multi‑layer side seal bag makers

Designed for bags made from multiple layers of film (e.g., laminated structures). The CX-TB-500-600X2 specifically handles up to 4 layers. This matters for bags that need barrier properties or printed outer layers with sealable inner layers.

Food‑grade compliant models

Certain models are engineered to meet food packaging standards. This affects seal bar materials (no contamination), lubricants (food‑safe), and overall cleanability.

A side seal bag making machine that is food‑grade compliant will have documentation to prove it – ask for the certificates.

How to Match a Model to Your Product

Thin produce bags (0.005‑0.01mm)

Look at CX-430-550X2 or CX-SB-500-800*2. These run at 200‑400+ bags per minute. Thin film seals quickly, so speed is the priority.

Medium grocery / bakery bags (0.01‑0.06mm)

CX-700, CX-500X2, or CX-800. Speeds from 20‑260 pcs/min. Match the width to your bag size – the CX-800 only goes to 700mm wide, while CX-700 goes to 650mm.

Heavy‑duty industrial bags (0.03‑0.6mm)

CX-FB-1100-1700 or CX-FB-800-1200. These run slower (70‑120 pcs/min) but handle much thicker film and wider widths (up to 1600mm). Good for heavy packaging or construction materials.

Multi‑layer laminated bags

CX-TB-500-600X2 is specifically designed for up to 4 layers. Speed drops (120‑300 pcs/min) but you get consistent seals across multiple plies.

What the Spec Sheet Doesn’t Tell You

“Bag making speed” varies by length

The rated speed (e.g., 260/min) is usually at the shortest bag length. Longer bags mean slower cycles because the machine has to pull more film between seals.

Dual lane machines need double the operator attention

Two lanes means two rolls of film, two sets of seals, two stackers. When one lane jams, the other can keep running – but you need to catch jams quickly.

Thickness range is a guide, not a guarantee

A machine rated for 0.01‑0.06mm will run 0.01mm and 0.06mm, but not necessarily with the same speed or seal quality. Test your actual film before committing.

Where to Find a Side Seal Bagger That Matches Your Volume

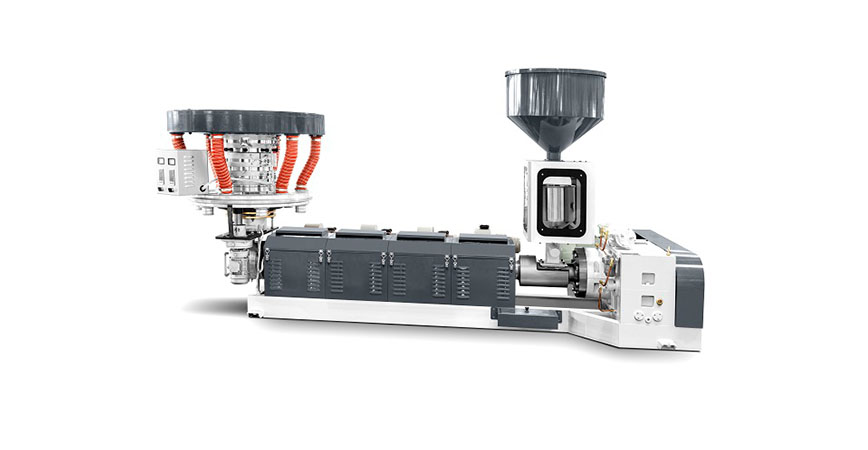

Chaoxin has been building bag making machines alongside their blown film lines for years. Their side seal machines are designed for durability and performance, with models ranging from entry‑level (CX-700) to high‑volume dual‑lane (CX-430-550X2).

What’s actually useful to know:

• The catalog is free – you can see all models, speeds, and widths before talking to a salesperson.

• They exhibit at CHINAPLAST – Booth 8.1B46, April 2026. If you’re going, you can see the machines run in person.

• Food‑grade models are available – ask for documentation if you need compliance.

A Quick Reality Check – Is Side Seal Right for You?

You need side seal if:

• Your bag has seals on the side edges (not the bottom)

• You pack produce, bakery, or irregularly shaped items

• You need high speed (200+ bags per minute)

You need bottom seal if:

• Your bag is a standard T‑shirt or flat bag with bottom seal

• You run a conventional bag making line

You need both if:

• You offer multiple bag styles to different customers

For many converters, a side seal machine is a second line alongside bottom seal equipment – not a replacement.

Your Next Step – Get the Free Catalog

You don’t need to spec a machine from a web page. Chaoxin offers a free catalog that details speeds, widths, thickness ranges, and lane configurations for each side seal model.

A side seal bag making machine that matches your film type, width, and speed will run reliably for years. Chaoxin builds them for durability and food‑grade compliance where needed.
